10m Laser Range Finding Module RS485
10m Laser Range Finding Module RS485
10m Laser Range Finding Module RS485
10m Laser Range Finding Module RS485
10m Laser Range Finding Module RS485
10m Laser Range Finding Module RS485
10m Laser Range Finding Module RS485

10m Laser Range Finding Module RS485

Get Latest Price
Payment Type:T/T,Paypal
Incoterm:EXW,FCA,FOB
Min. Order:1 Piece/Pieces
Transportation:Air,Express
Port:Chengdu
Product Attributes

Model No.U81-10m(b220811g)

BrandJRT/OEM

Place Of OriginChina

PrincipleOptical Sensor

OutputDigital Sensor

JackDigital, Serial, Rs-485

TechnologyOptical

ApplicationIndustrial Automation

Baud Rates19200bps

Accuracy+-1mm

Size41*17*7mm

Product NameIndustrial Laser Range Sensor

Measuring UnitMm

Packaging & Delivery
Selling Units : Piece/Pieces
Package Type : Natural Packaging
Picture Example :
Product Description

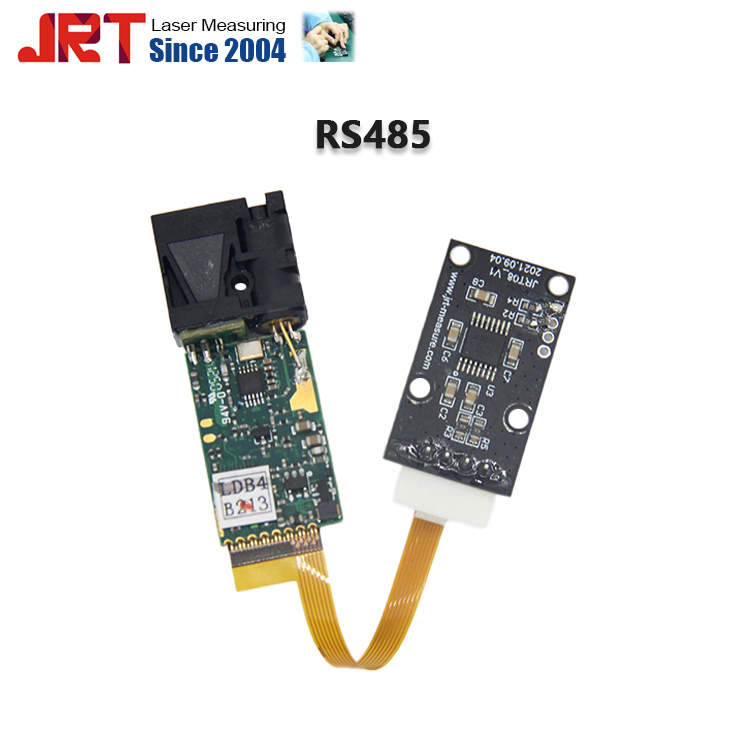

10m Laser Range Finding Module RS485

Are you looking for a short laser range finding sensor?
Yes, this 4U81-10m is a short distance measurement sensor and mainly used in industrial field. Kindly suggest that you choose this Laser Rangefinder with RS485, if you need transfer measurement data in hundreds meters. The measurement accuracy of smart devices is +-1mm and the error is small. The product has the highest measuring frequency of 3 Hz, fast response, and can work in 0 - 40 degrees Celsius environment. It has stable performance. Welcome to choose JRT products.

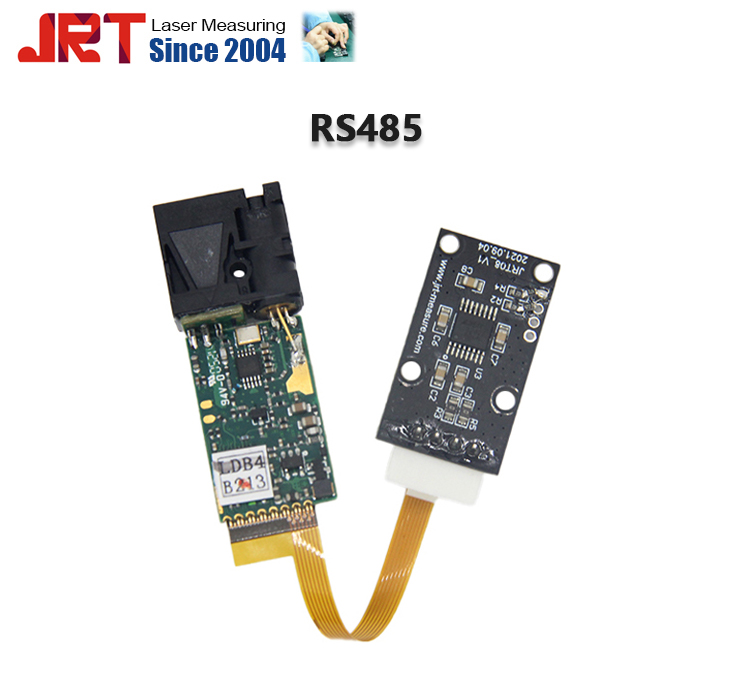

Laser Finding Module RS485

Technical Specifications:
Range: 3cm - 10m
Visible measuring: 620nm-690nm
Measuring accuracy: +-1 mm
Measuring frequency: Up to 3 Hz
Laser type: Class 2, red
Interface options: Serial/usb/rs232/rs485/bluetooth
Size: 41*17*7mm
Voltage: DC2.5~3V
Electrical Level: TTL/CMOS
Working temperature: 0 ~ 40 degree
Storage temperature: -25 ~ 60 degree

How to install JRT 10m Laser Range Finding Module?
10m Finding Module

Tips:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. 60m can be customized.
4. Voltage can be changed by power converter LDO
5. Frequency would be affected by environment.
6. Operating temperature -10 ℃~50 ℃ can be customized.
7. Analog can be customized.
More Detailed Pictures

Finding Module 10m

10m Laser Finding Module Diagram

Laser Finding Module 10m

Applications

Range Finding Module 10m

  Chengdu JRT Main Ranging Modules: Industrail Laser Distance SensorsLaser Distance Meter ModulesTof LiDAR Sensors.
