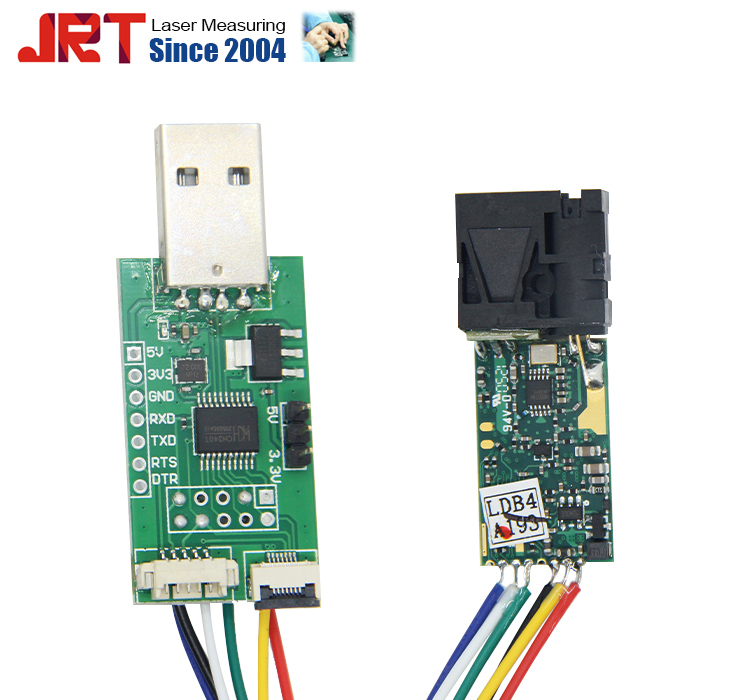

5m Serial Laser Based Distance Sensor USB
Get Latest PricePayment Type: | T/T,Paypal |
Incoterm: | FOB |
Transportation: | Express,Air |
Port: | Chengdu |
Payment Type: | T/T,Paypal |
Incoterm: | FOB |
Transportation: | Express,Air |
Port: | Chengdu |
Model No.: 2U85-5m(b20210-220620g1)
Brand: JRT Measure
Measuring Time: 0.4s - 4s
Place Of Origin: China
Principle: Optical Sensor
Output: Digital Sensor
Amplifier Type: Optical
Jack: Digital, Serial
Application: Industrial Automation
Applicaitons: Arduino, Etc
Laser Working Principle: Single Transmit And Single Receive
Feature: Low Consumption
Interface Options: USART,FPC,Connectors Etc.
High Frequency: Up To 3hz
Measure Accuracy: +-1 Mm
N.W: About 4g
Product Name: 5m Laser Distance Sensor Short Range
Selling Units | : | Set/Sets |
Package Type | : | Neutral package |

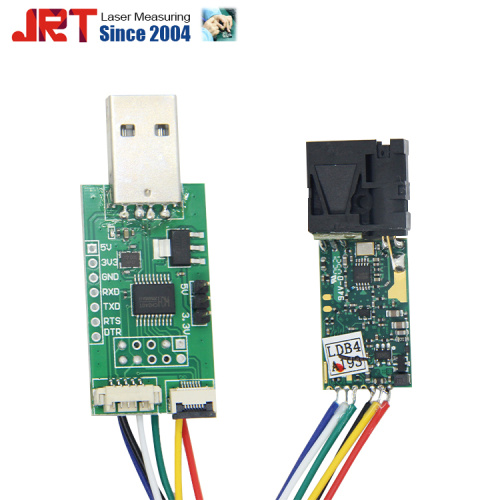

5m Serial Laser Based Distance Sensor USB
This a very small and a low-cost Laser Distance Sensor, that can measure short range up to 5m. And the laser based distance sensors suport serial port or ttl/usb to communicate.
Are you interested on buying 2 units for testing of this: http://es.jrt-measure.com/micro-laser-distance-sensor/57056148.html
That's okay, normally the distance laser beam sensor modules will be delivered to you in 5-7 working days, if we got your payment. Any other questions, feel free to let us know, nice day.
Technical Feature: Range: 0.03-5 meters Size: 41*17*7mm HS code: 9015900090 for you to import in your country
Invisible measuring: 620nm-690nm
Measuring accuracy: +-1 mm
Measuring frequency: Up to 3 Hz
Laser type: Class 2, red
Interface options: Serial/usb/rs232/rs485/bluetooth
Working temperature: 0 ~ 40 degree
Storage temperature: -25 ~ 60 degree
Detailed Pictures
This really a small Laser Range Sensor(41*17*17mm)
Laser Based Distance Sensor Size
Laser Based Distance Sensor Working Principle
Laser Based Distance Sensor Len
Notes:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. 60m can be customized.
4. Voltage can be changed by power converter LDO
5. Frequency would be affected by environment.
6. Operating temperature -10 ℃~50 ℃ can be customized.
7. Analog can be customized.
Diagram for the Laser Based Distance Sensor
