Small 2D LiDAR Sensor

(Total 14 Products)

12m High Frequency TOF Laser Distance Rangefinder

Get Latest Price

Brand:JRT
Min. Order:1 Piece/Pieces
Model No:IT02s0827
Transportation:Air
Packaging:Natural Packaging
Supply Ability:10000pcs/day
Place of Origin:China Mainland
Productivity:10000pcs/day

12m High Frequency TOF Laser Distance Rangefinder Description: If you are looking for a laser sensor that can be used to measure moving targets. Then our IT02S sensor will be a good choice too. This radar sensor, also called TOF sensor, can measure...

Contact Now

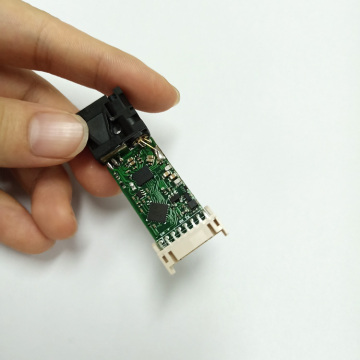

3v Low Cost Laser Measurement Sensor Tof Sensor

Get Latest Price

Brand:JRT
Min. Order:1 Piece/Pieces
Model No:Tof9112
Transportation:Air
Packaging:Natural Packaging
Supply Ability:10000pcs/day
Place of Origin:China Mainland
Productivity:10000pcs/day

3v Low Cost Laser Measurement Sensor Tof Sensor Descriptions IT02S is a single point lidar sensor, the laser measurement sensors is good for measuring distance and position with high speed, precision and frequency. According to the time of flight...

Contact Now

IT02S, is JRT new product in the early 2019, which is a single-point lidar sensor, also called ToF Distance Sensor. With a micro size of 46x17x7mm, customers can widely use in many Laser Measurement Solutions. The LiDAR Distance Sensor can measure 12m short-range with high frequency up to 100hz. It's great for Unmanned Aerial Systems. If you need us send you data sheet and spec for this products, offering sample as well, pls tell us, thank you.

IT02S Mini tof sensor Module Diagram

Parameters of IT02S:

Accuracy	+/-8cm@ 0.1~3.5m
Measuring Unit	cm
Measuring Range (without Reflection)	0.1-12m
Measuring Time	0.1~3 seconds
Measuring Frequency	100 Hz
Laser Class	Class II
Laser Type	650nm, <1mw, red
Weight	About 5g
Voltage	DC2.5V~+3.5V
Serial Level	TTL 3.3V
Size	46177mm
Operating Temperature	0-40 ℃ (32-104 ℉ )
Storage Temperature	-25~60 ℃ (-13~140 ℉)

IT02S – the High performance-price ratio measurement solution
* low power consumption of single transmit and single receive
* small size: 46*17*7mm
* low cost
* proffessional techinical support

FAQ

What kind of host do you sensor support?

Our laser distance sensors are serial port output, support data exchanging and UART support communicate with Arduino, Raspberry Pi, MCU,PC.

Q: We are planning to use it to measure distance between cars and I would like to know what laser measurement sensors your company has that could attend my company's needs?

A: Hello Sir. We recommend you PTFS100 laser distance sensors that can measure 100 meters and 100Hz high frequency, with invisible laser, with accuracy about 10 cm. For more details, welcome contact us to communicate. Here is the key features will help you, according to your project: ①meters or more ②Frequency: 100 Hz or more ③Uart 3.3v protocol ④About the accuracy I think 10cm(the similar application normally required).

Can this LiDAR sensor using in the drone?

Yes, of crouse, we have many drone clients. They use the 100Hz high frequency ToF sensor for drones height position.
