Modbus RS485 Maximum Distance Module 30m
Get Latest PricePayment Type: | T/T,Paypal,Western Union |
Incoterm: | FOB,EXW |
Payment Type: | T/T,Paypal,Western Union |
Incoterm: | FOB,EXW |
Model No.: U85485-1112
Weight: 4g
Baud Rates: 9600bps/19200bps
Product Name: Industrial Laser Distance Sensor
Operating Voltage: DC 3V - DC 3.3V
Working Temp: 0 ~ 40°C
Accuracy: 3mm
Frequency: 3 Hz
Distance: 0.03-30m
Resolution: 3mm
Modbus RS485 Maximum Distance Module 30m
U85 short range distance measurement, maximum distance measure is 30m(30000mm). Miniature design 41*17*7mm with versatile mounting options, Space-saving line laser module in small standardized design, STSR(single transmit and single receive) outdoor laser measure - exact and precise signal evaluation, durable Laser Distance Sensor rs232 or rs485 interface. Also, the laser sensor module can be used and conmmunicated to your Modbus.
Diagram for the Distance Module 30m
30m Long Distance Sensor Size
Key parameters: Simple, fast, long, precise
Long range: up to 30m(40m can be customized)
Accuracy: +-3mm
Measuring time: 0.125s-4s
Size: 41*17*7mm
Detailed parameters
Measuring time: 0.125s-4s
Invisible measuring: 620nm-690nm, red
Measuring range: 0.03-30 m
Measuring accuracy: +-1 mm
Laser type: Class 2 laser
Electrical Level: TTL/CMOS
Interface options: USB, RS232, RS422, rs485
Working temperature: 0 ~ 40 Celsius
Storage temperature: -10 ~ 60 Celsius
Weight: about 4g
Notes:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. Voltage can be changed by power converter LDO
4. Frequency would be affected by environment.
5. Operating temperature -10 ℃~50 ℃ can be customized.
6. Analog can be customized.
More Detailed Pictures:
How to use your module to test?
There is a simple steps for you:
1. install the Gese software and USB driver on your computer.
2. Then you can send the related command to test
Communication
1.‘O’(0x4F): Turn ON laser beam, and return “,OK!”;
2.'C'(0x43): Turn OFF laser beam, and return “, OK!”;
3.'S'(0x53): Module status read, module returns Temperature & Battery Voltage, e.g.: “18.0’C, 2.7V”;
4.'D'(0x44): Auto mode Distance read.

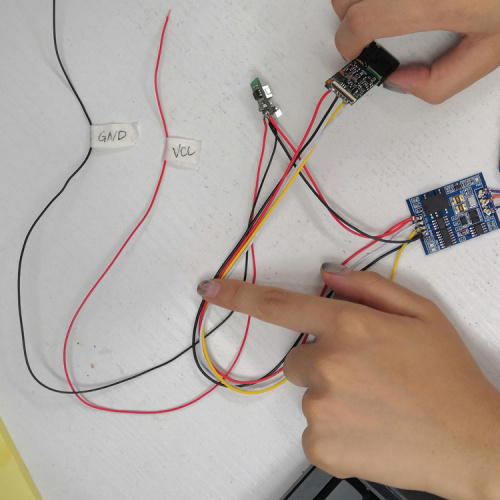

Hardware Connections
1. Hardware Interface: 2 line USART(Rx, Tx);
2. Baudrate: 19200bps;
3. Data bits: 8b;
4. Parity: none;
5. Flow control: none.
How To Measure U85 Laser Distance Sensor
Our customers on the China International Hardware Show.
Chengdu JRT Main Ranging Modules: laser distance meter module, industrial laser distance sensor, mini TOF ranging sensor.
