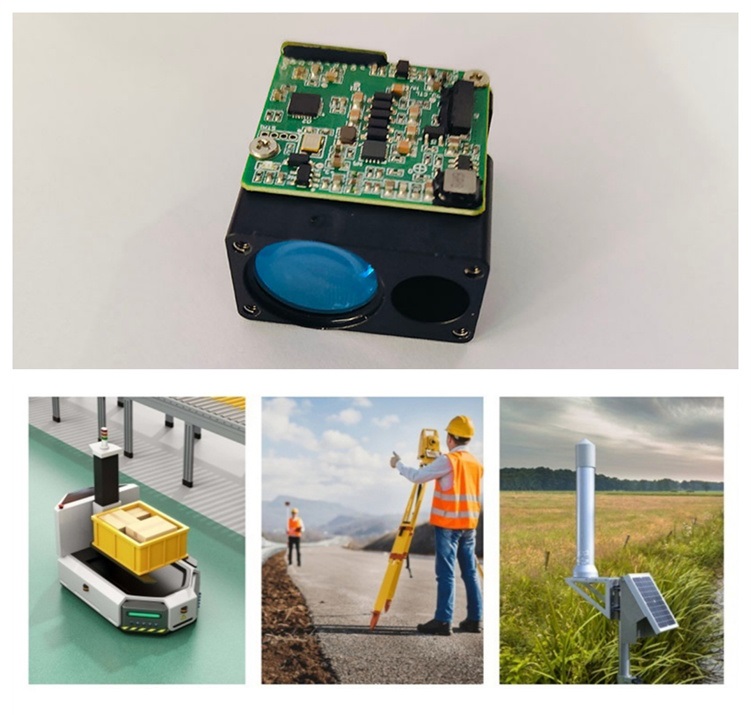

10000Hz 200m Long Range Radar Sensor UAV LiDAR

10000Hz 200m Long Range Radar Sensor UAV LiDAR

Are you looking for a manufacturer supply ultra-lightweight long range radar sensor UAV LiDAR and Time-of-Flight (ToF) radar sensors that operate at 10,000 Hz and reach 200m? Common applications for the LiDAR range sensors with these specs include high-speed obstacle avoidance, terrain-following, and altitude measurement. If you are interested in this distance laser sensor product, please provide us with more of your peoject details, so we can discuss more.

Frequently Asked Questions hope can help you?

1. Do you provide the UART protocol/command PDF?

Yes, the data exchange between the long range module and the MCU adopts RS422/TTL communication. For more, please contact us.

2. Is the laser visible red or IR? Does it include a cable/connector?

Invisible laser. Normally, customers will choose the USB-to-TTL, as it's convenient to test via computer.

Common UAV Applications

Terrain Following: The 200m range paired with a high 10,000 Hz pulse rate allows drones to quickly adapt to changing ground elevations. This is highly useful for agricultural spraying, city patrolling, and pipeline or powerline inspections.

Obstacle Avoidance: Because of the lightning-fast data acquisition (10KHz), these High-Frequency & Long-Range sensors can be mounted on forward or downward-facing gimbals to detect trees, powerlines, and moving objects in real-time.

Precision Altimetry: These units integrate seamlessly with open-source flight controllers like Arduino or Raspberry Pi to provide highly stable radar altimeter data even in low-visibility environments.

Technical Parameters

1 Laser Wavelength: 905nm±10nm

2 Emitting Caliber: Φ14mm

3 Receiving Caliber: Φ18mm

4 Baud rate:  19200bps/38400bps/57600bps/115200bps/25600bps/460800bps/921600bps

5 Range Capability: ≥150m (for conventional natural large targets)

6 Minimum range:  ≤0.1m

7 Measurement Accuracy:  ≤0.1m(0.1～2m) 5%×L (>2m is related to the measurement range L, and the maximum accuracy is not more than 2m)

8 Accuracy ≥98%

9 False Alarm Rate  ≤2%

10 Measurement Frequency 20Hz～10KHz

11 Weight  ≤45g

12 Dimension  ≤46.5mm×33.5mm×25mm

13 Electrical Interface Plug: DF52-10S-0.8H

                                   Plug: DF52-10P-0.8C

14 Supply Voltage  9V～36V

15 Standby Power Consumption ≤1W

16 Average Power Consumption ≤2.5W

17 Peak Power Consumption ≤3W

18 Function  Laser ranging and reporting distance value function/ frequency setting function/ baud rate setting function/self-check function

19 Operating temperature: -40℃～+65℃

20 Storage temperature: -50℃～+85℃

1.2　Electrical interface

The MCU terminal connects to the module terminal connector for cross-test through the 10PIN connector. The power supply and communication port pins of the module terminal are defined as shown in the following table, and the position of connector 1 is shown in the following figure.

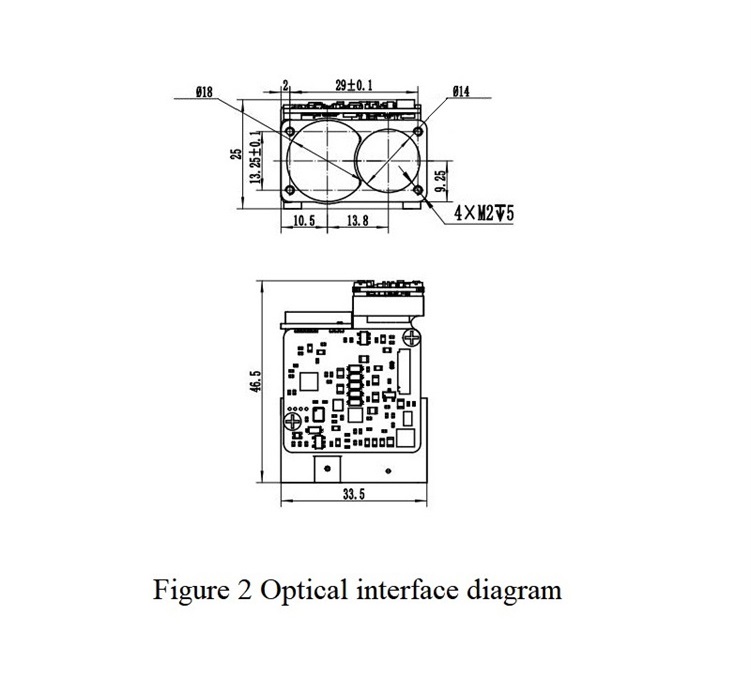

1.3　Mechanical and optical interfaces

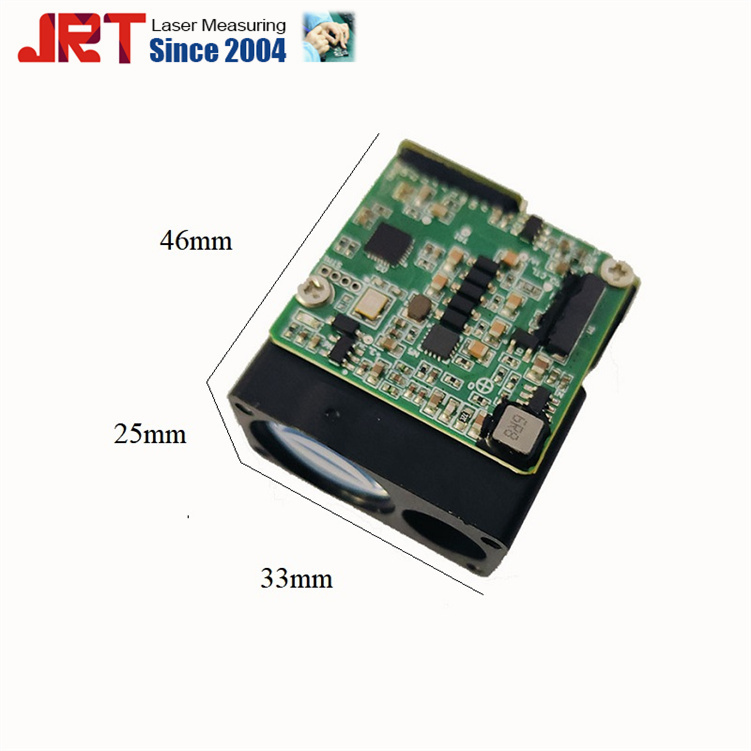

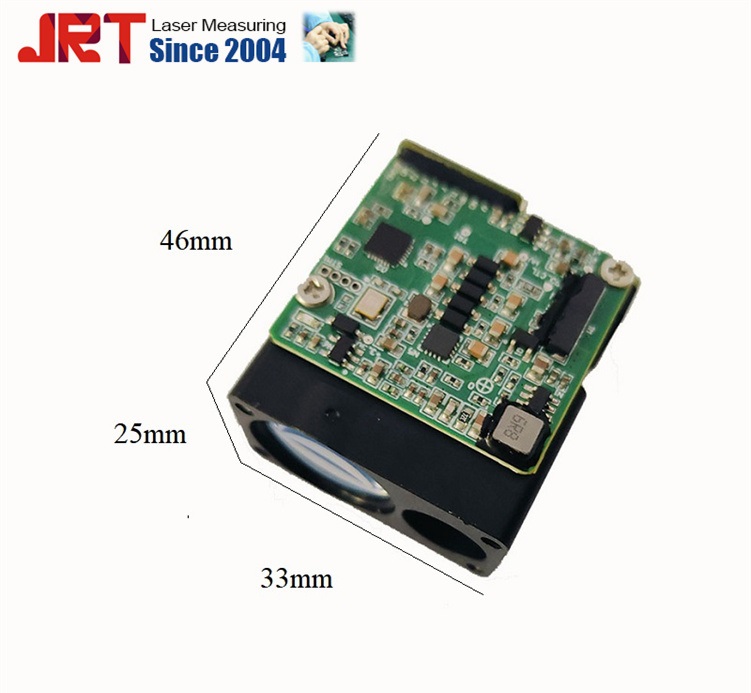

The dimensions of the optical interface of the module are shown in the figure below(46mmx33mmx25mm).

1.4　Protocol

The data transmission between the module and the MCU includes the following:

Control commands: ranging, baud rate setting, frequency setting, self-test command, etc.;

Return data: including distance information, ambient temperature, etc.

The data exchange between the module and the MCU adopts RS422/TTL communication, and its characteristics are as follows:

Baud rate: 19200bps/38400bps/57600bps/115200bps/25600bps/460800bps/921600bps;

Byte composition: contains 1 start bit, 8 data bits, no parity bit, 1 stop bit, 8bit data bits, first send the low bit, then send the high bit;

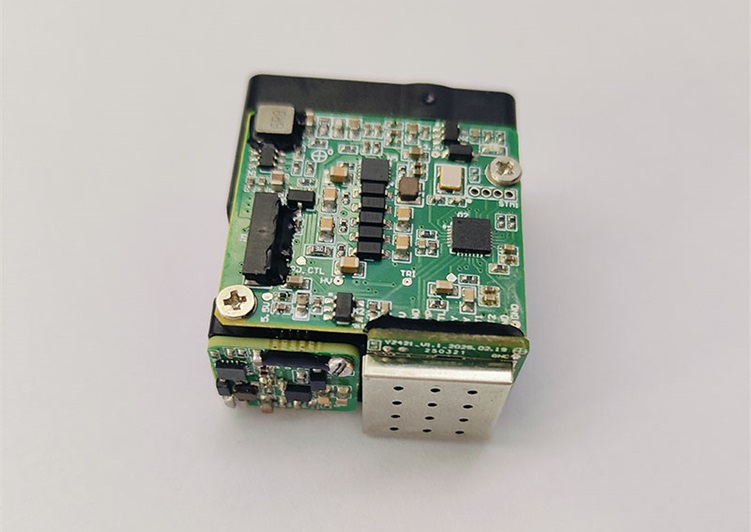

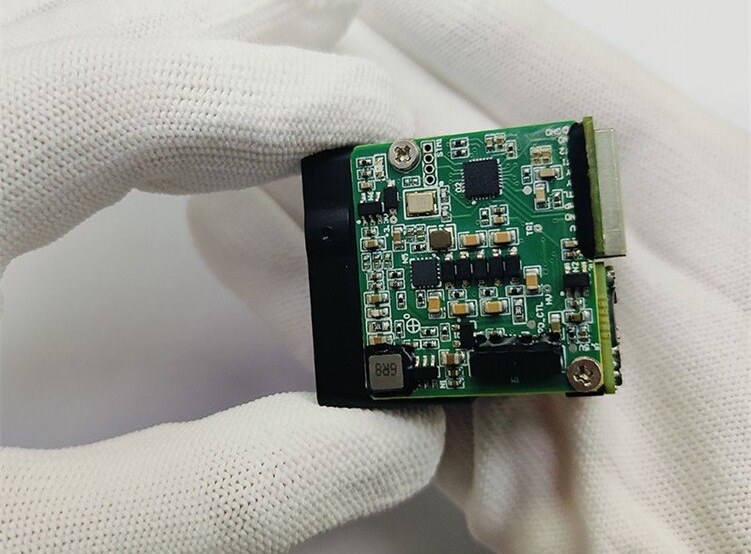

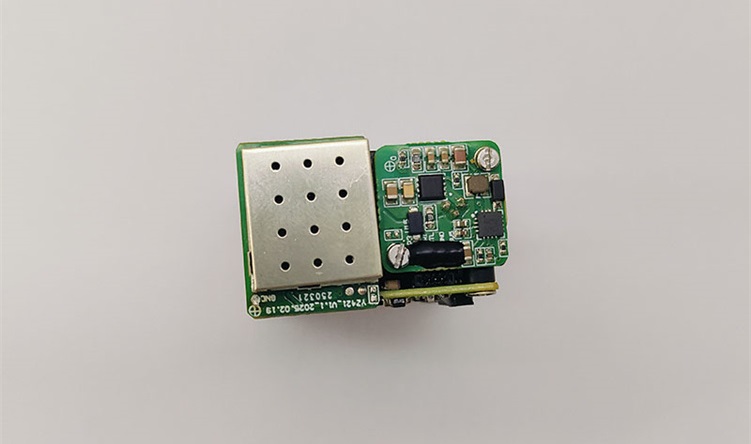

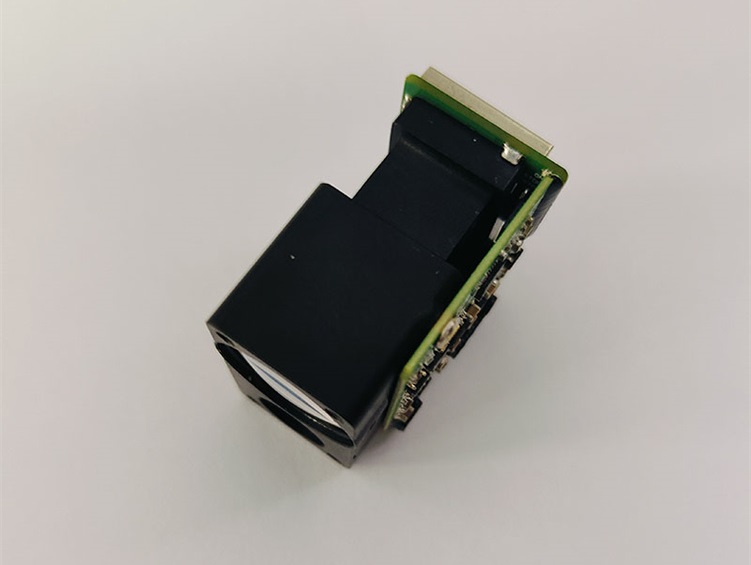

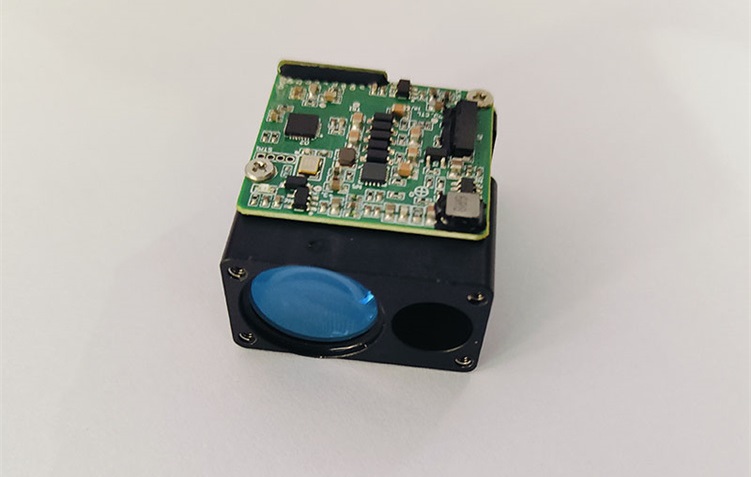

More Detailed Pictures:
