Product Description

12km Long Range Ir Sensor Module

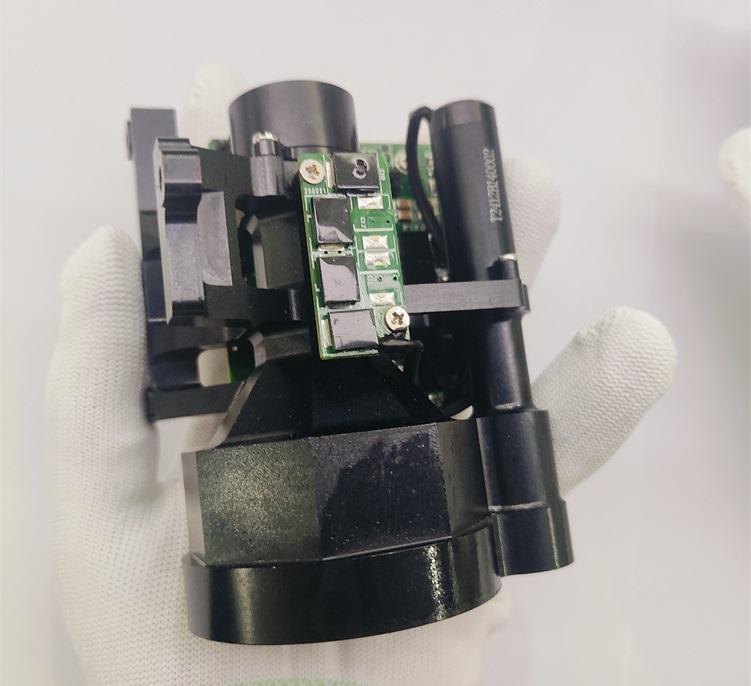

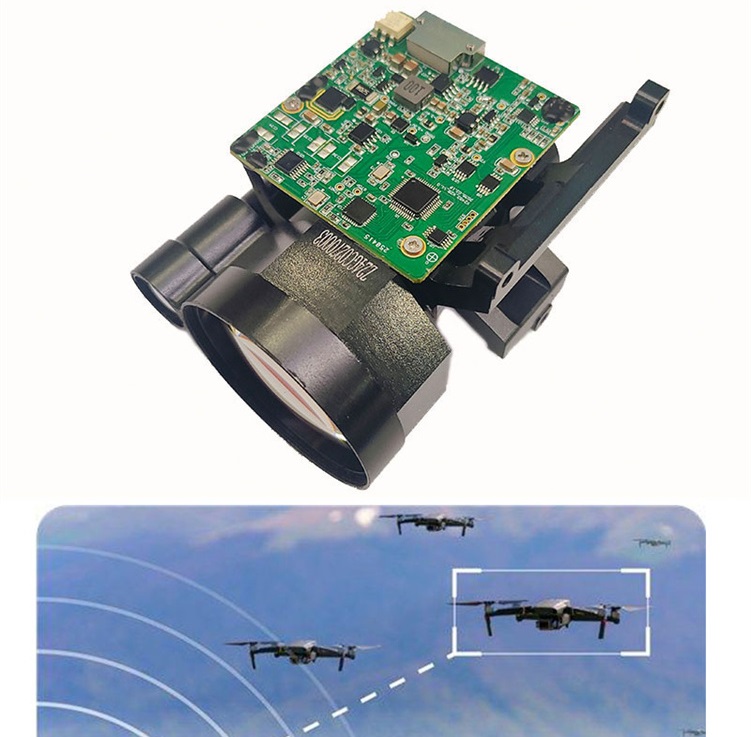

Are you working as Director and looking for a long range ir sensor in UAVs, Radars and other products projects for homeland security? Yes, the Laser Rangefinder (LRFs) sensor(8km range and 12000m range) is suitable for using it with a drone and electro-optical Pod. If you need us send you more detailed data sheets of models closer to your desired ranges, please contact us.

12km LRF Sensor Module Parameters Performance:

Module: ETYS-12KX-1(b260326n26-4)

The performance specifications are as follows:

a) Operating Wavelength: 1535 nm ± 10 nm;

b) Beam Divergence: ≤ 0.35 mrad;

c) Measurement Success Rate: ≥ 98%;

d) Ranging Frequency: Single-shot, 1 Hz, 5 Hz, 10 Hz;

e) Ranging Capability: ≥ 12,000 m (under visibility ≥ 15 km, relative humidity ≤ 60%, targeting a 2.3 m × 4.6 m vehicle or equivalent target board with a reflectivity of 0.3);

f) Blind Zone: ≤ 50 m;

g) Ranging Accuracy: ≤ ± 2 m;

h) Distance Resolution: ≤ 40 m.

Applications

This Industrial Laser Range Sensor can be widely used in drone pod, thermal camera, night vision, agricultural forestry, electricity/power inspection, safety supervision, urban management, security, fire protection, geological exploration etc.

1.2 Applicable Environmental Conditions

a) Operating Temperature: -40°C to +60°C;

b) Storage Temperature: -45°C to +65°C (evaluated as part of the complete system);

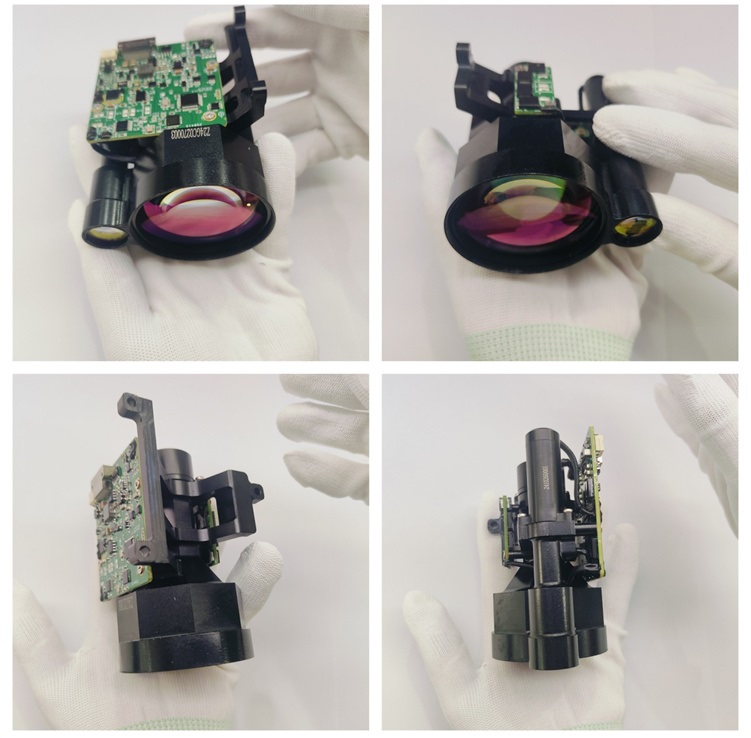

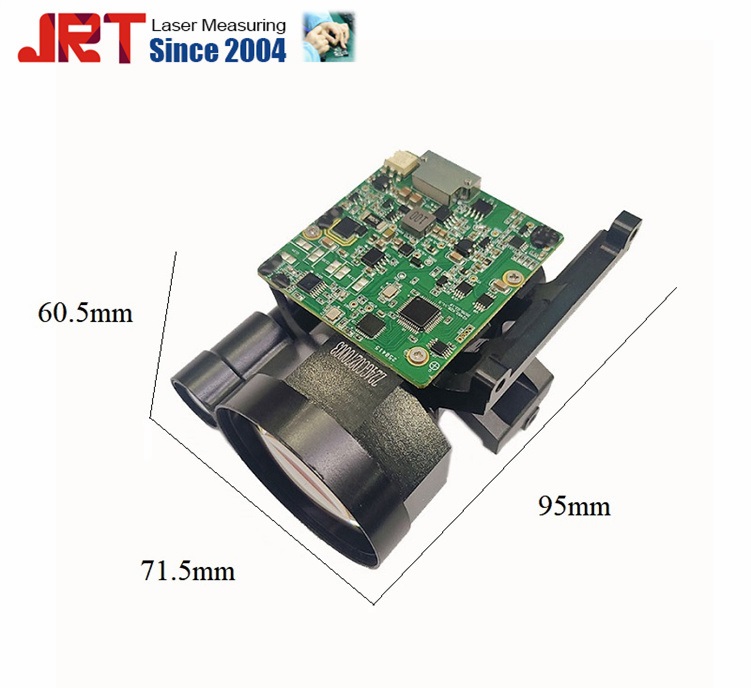

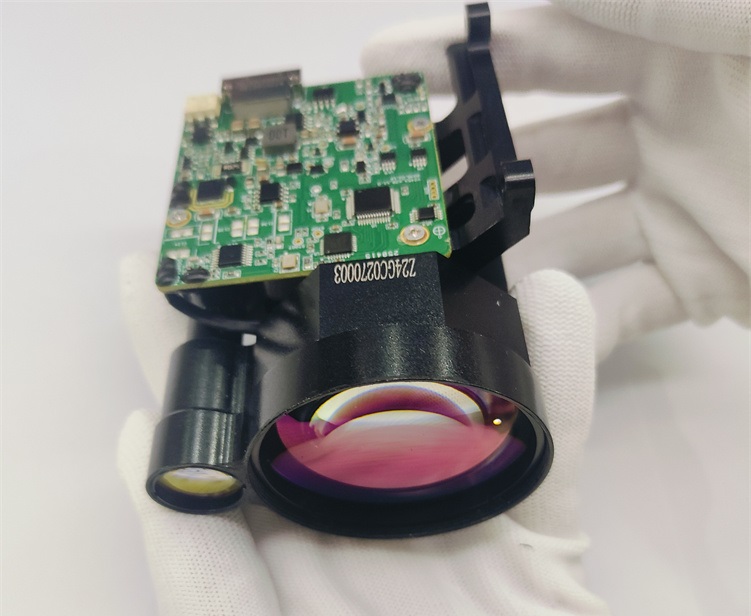

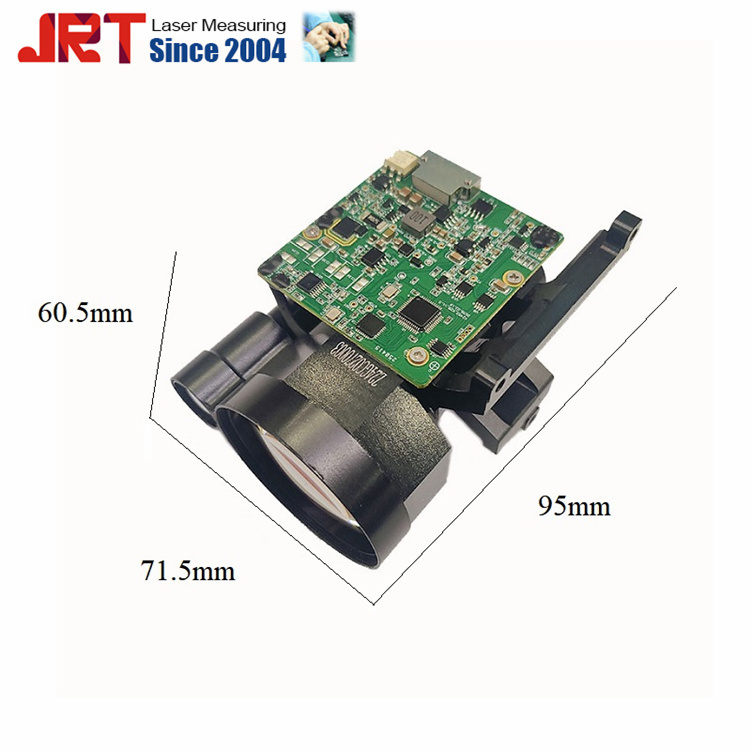

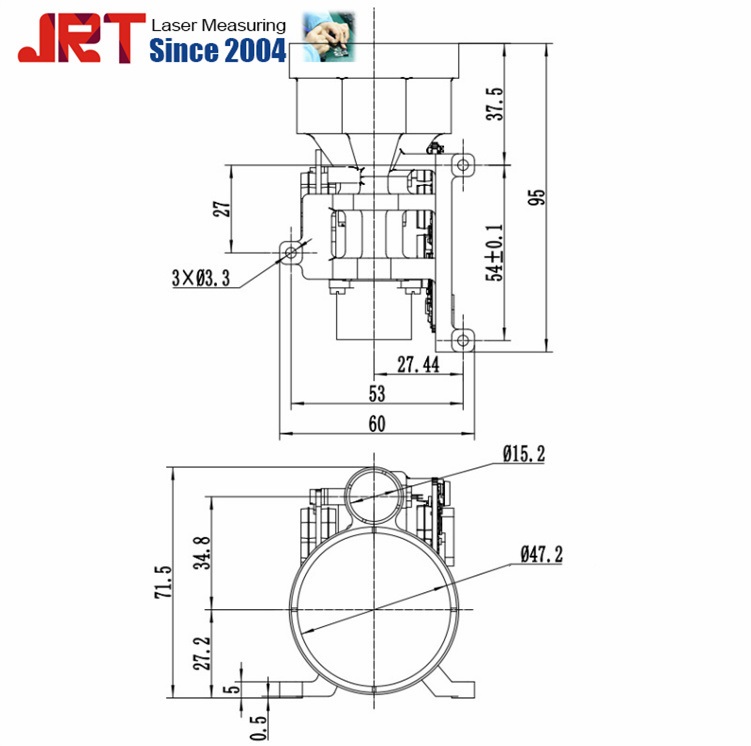

Dimensions: ≤ 95 mm × 60.5 mm × 71.5 mm

Weight: ≤ 240 g

Interface: RS422 Communication Interface

1.3 Ranging Capability

In an environment with visibility ≥ 15 km and relative humidity ≤ 60%, when targeting a 2.3 m × 4.6 m target board (reflectivity 0.3) or an equivalent target, the laser rangefinder's ranging capability exceeds 12,000 m, with a measurement success rate greater than 98%. This serves as a key indicator for determining whether the laser rangefinder meets qualification standards. Figure 4 illustrates the theoretical relationship between the laser rangefinder's ranging distance and visibility.

2.1 Electrical Interface

The electrical interface requirements are as follows:

a) Power Supply Voltage: 28 V (22 V to 32 V);

b) Operating Power Consumption: ≤ 2.5 W @ 1 Hz;

2.2 Communication Interface

a) Communication Interface: RS422;

b) Baud Rate: 38,400 bps (Default) / 9,600 bps / 57,600 bps / 115,200 bps;
