400m Sensor Distance Laser Measuring Tool 50Hz

400m Sensor Distance Laser Measuring Tool 50Hz

Get Latest Price

Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Min. Order:	1 Set/Sets
Transportation:	Air,Express
Port:	Chengdu, Sichuan

Contact Now

Product Description

Product Attributes

Model No.: PTFS-50Hz(b241010n24-1)

Brand: JRT-measure, Support OEM/ODM

Origin: China

Certification: CE, ISO14001, FDA, ISO9001, FCC

Place Of Origin: China

Principle: Optical Sensor

Output: Digital Sensor

Amplifier Type: Standard, Optical

Jack: Digital, Serial

Technology: Optical

Application: Industrial Automation

Range:: 400m

Laser Type: 905nm, class 1

Accuracy:: ±1m

Voltage: DC +3V ~ 5V

Baud Rate: 115200bps, default

Operating Temperature:: 0~50℃

Packaging & Delivery

Selling Units	:	Set/Sets

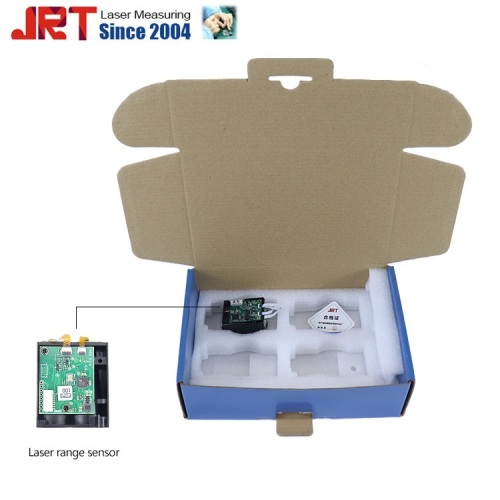

Package Type	:	Regular package
Picture Example	:
Download	:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

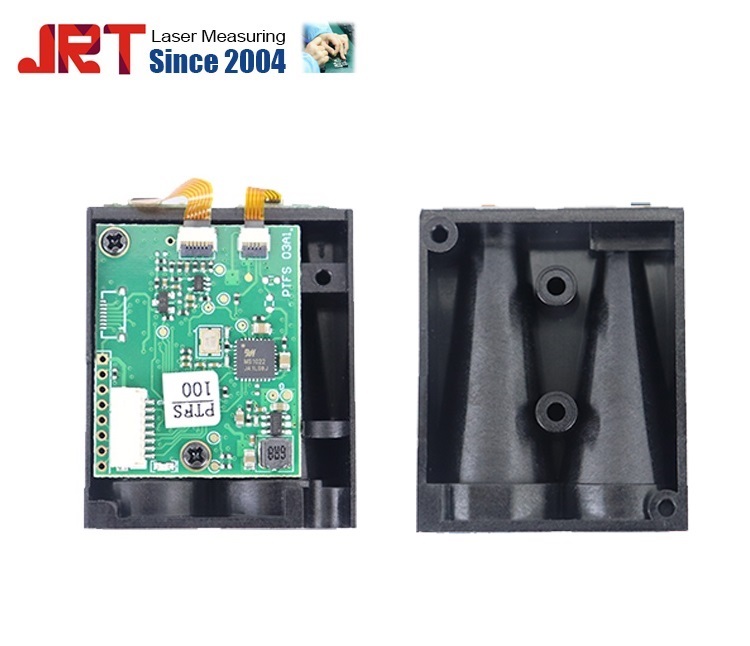

400m Sensor Distance laser measuring tool 50Hz

JRT new product high frequency Distance Measuring Sensor updates and long range & high accuracy characteristics are also included. This laser measuring Distance Sensor is non-contact measuring sensor that can measure up to 400m, with 50Hz rapid measurement. If you are looking for a laser measuring tool sensor, to make new project and need sensor for measurement, welcome to write to us and tell us your requirements.

Technical Parameters:

Model: PTFS-400m & 50 Hz

Light class: 905nm, class 1

Accuracy: ± 1m

Frequency: 50 Hz(others can be customized)

Blind Area: 3m

Range: 3-400m

Resolution: 0.1m

Beam divergence Angle: 3 mrad

Serial level: TTL 3.3V

Communication Interface: UART, default baud rate 115200bps

Physical features:

Volume/Dimensions: 43*35*21mm

Weight: about 30g

Electrical characteristics:

Working voltage: DC +3V ~ 5V

Power consumption: 330mW at 3.3V

Working current: 100mA

Environmental

Operating Temperature: 0~50℃(-20~50℃ can be customized, but it will affect accuracy.)

Storage Temperature: -30~60℃

Description:

The reflectivity of ordinary white wall/white paper is ~70%.

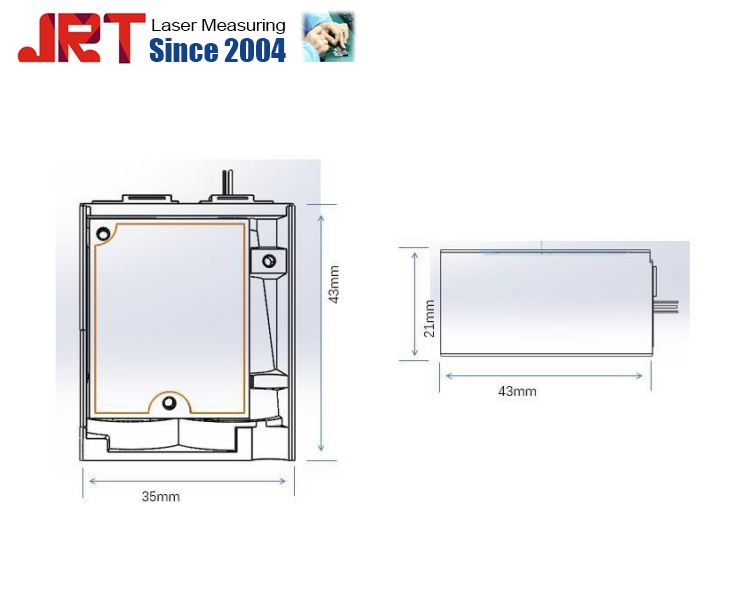

Mechanical Dimensions

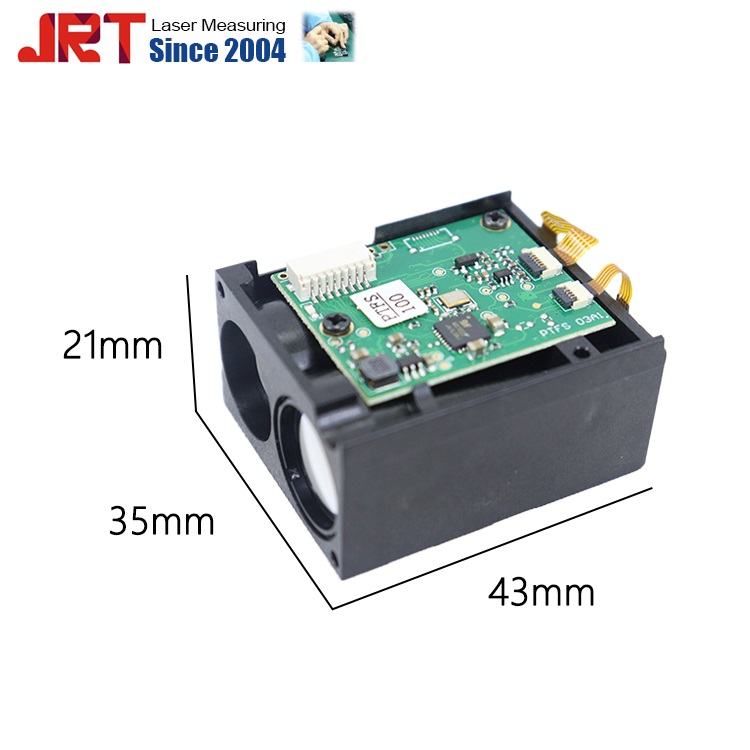

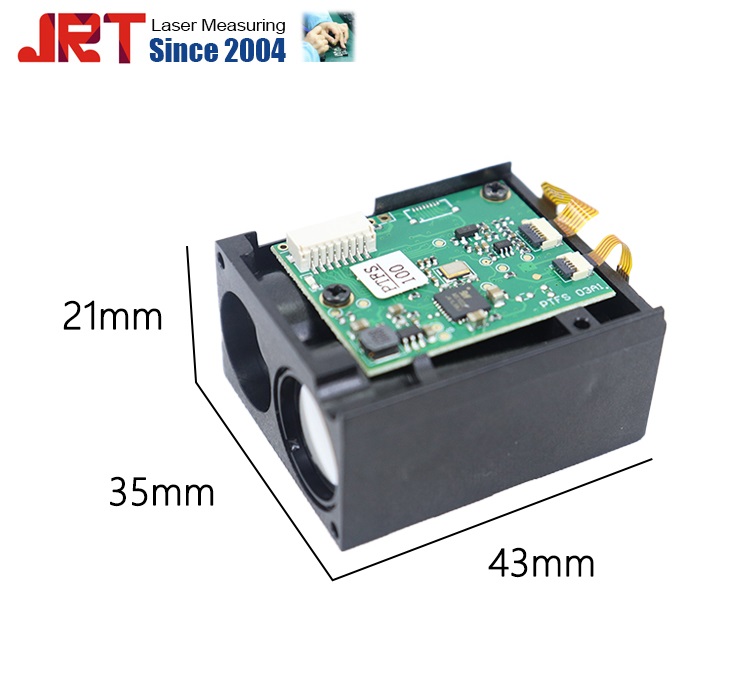

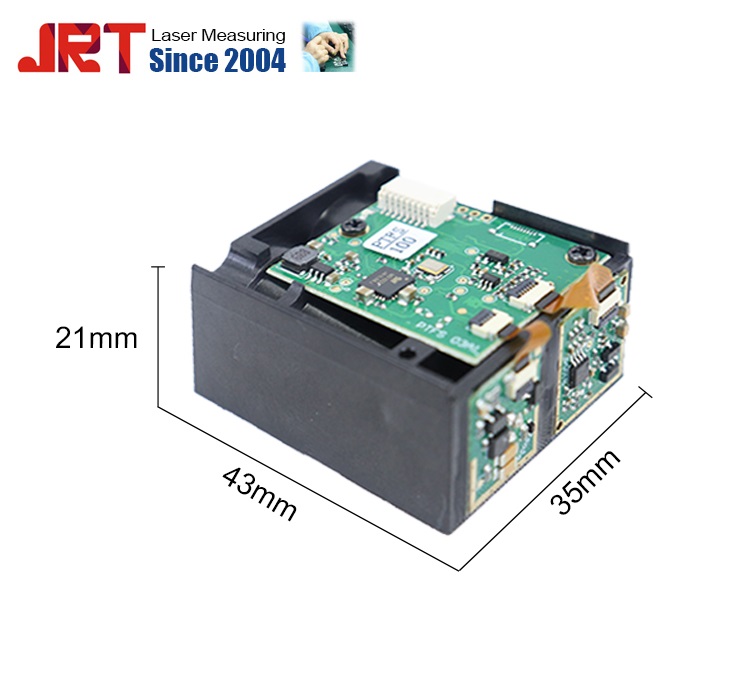

It can measure long range up to 400m, easy to integrate.(43mm *35mm *21mm)

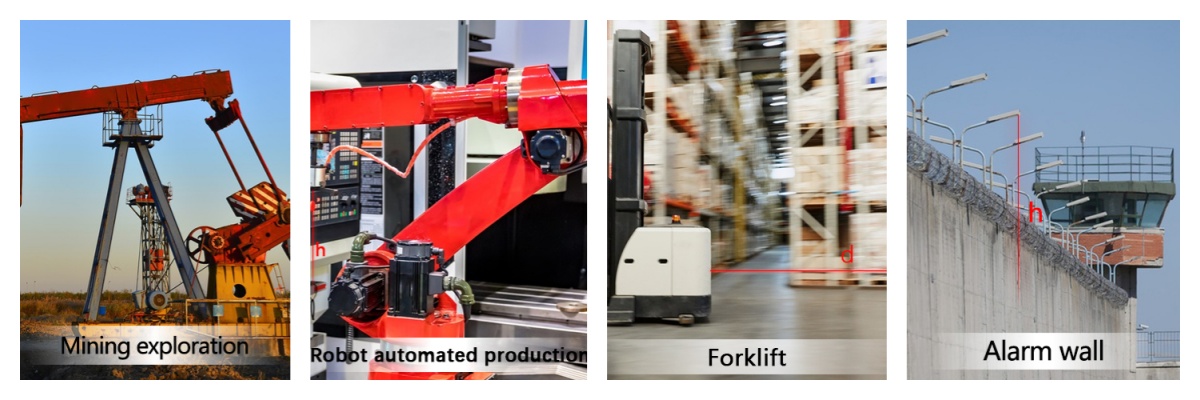

Applications

Customers will use this for power industry, smart home, alarm wall, automatic robot ranging, forklift collision avoidance, intelligent transportation, mining etc. With automated measurement system, the Long Range Radar Sensor can be realized truck/drone/grain silo height.
