60m RS232 Communication Distance Sensor

60m RS232 Communication Distance Sensor
We provide customers M88B series laser measuring equipment sensor. Laser ir distance sensor is capable of detecting targets based on both position and distance (detectable distance: up to 60000mm).
The laser level and distance measure sensors that detect objects and measure their widths, thicknesses, and other dimensions. M88B short Range Sensor with rs232 Models are available with ttl to meet different application and precision needs.

Features and Benefits
• Embedded ttl communication
protocol helps minimize testing time and increase productivity
• Class 2 laser helps alignment and measure
• Sensers measuring ranges:
• 30 mm to 60000 mm

Technical Feature:

Range: 0.03 meters - 60 meters
Invisible measuring: 620nm ~ 690nm
Measuring accuracy: +-1 mm
Measuring frequency: Up to 3 Hz
Laser type: Class 2, red
Interface options: Serial/usb/rs232/rs485/bluetooth

Size: 45*25*12mm
Working temperature: 0 ~ 40 degree
Storage temperature: -25 ~ 60 degree
Notes:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. 60m can be customized.
4. Voltage can be changed by power converter LDO
5. Frequency would be affected by environment.
6. Operating temperature -10 ℃~50 ℃ can be customized.
7. Analog can be customized.

Detailed Pictures

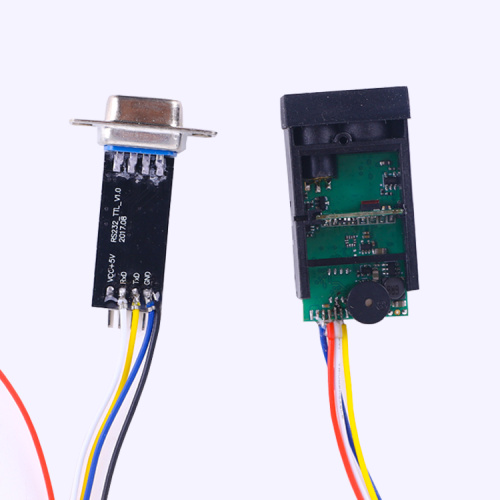

60m RS232 Communication Distance Sensor Front

60m RS232 Communication Distance Sensor Back

60m RS232 Communication Distance Sensor Lens

60m RS232 Communication Distance Sensor Size

Diagram for the 60m Laser Distance Sensor
