Laser Distance Sensor Module With RS232 TTL Serial
Laser Distance Sensor Module With RS232 TTL Serial
Laser Distance Sensor Module With RS232 TTL Serial
Laser Distance Sensor Module With RS232 TTL Serial
Laser Distance Sensor Module With RS232 TTL Serial

Laser Distance Sensor Module With RS232 TTL Serial

Basic Info

    Model No.: B605B

Product Description

100m Laser Distance Sensor module with RS232 TTL serial
100m laser Distance Sensor module with RS232 TTL serial also called Industrial Laser Distance Sensor,responds quickly, with high accuracy. JRT Laser Distance Meter Sensor Module can not only be connected to USB, RS232, RS485 , BeagleBoard,Renesas controller,but also can be applied to Arduino, Raspberry Pi, UDOO, MCU etc. 100m Laser Distance Measurer Sensor RS232 is a common output mode in the industry. Laser Rangefinder Sensor Module is connected to RS232 for the convenience of customers to use, avoiding unnecessary damage caused by customers' separate welding.

Product Specifications


Accuracy ±1 mm (0.04 inch)
Measuring Unit meter/inch/feet
Measuring Range (without Reflection) 0.03-150m
Measuring Time 0.125~4 seconds
Laser Class Class II
Laser Type 635nm, <1mW
Size 72*40*18mm (±1 mm)
Weight About 25g
Voltage DC2.0~3.3V
Electrical Level TTL/CMOS
Frequency 8Hz
Operating Temperature 0-40 ℃ (32-104 ℉ )
Storage Temperature -25~60 ℃ (-13~140 ℉)

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.

3.120m,150m can be customized.

4. Voltage can be changed by power converter LDO

5. Frequency would be affected by environment.

6. Operating temperature -10 ~50 can be customized.



B605B m

B605B with RS232 5

11

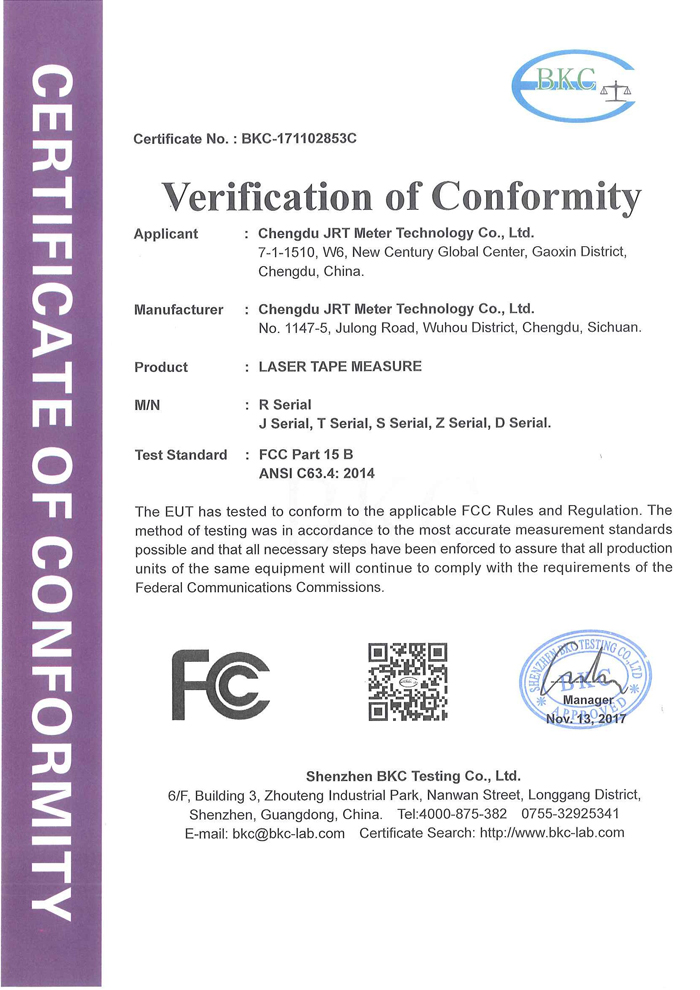

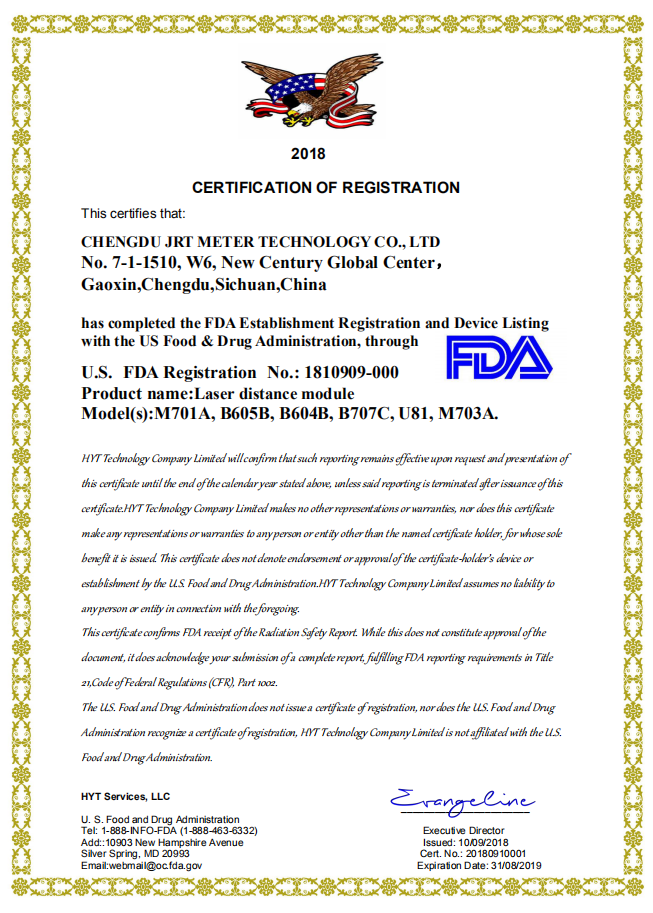

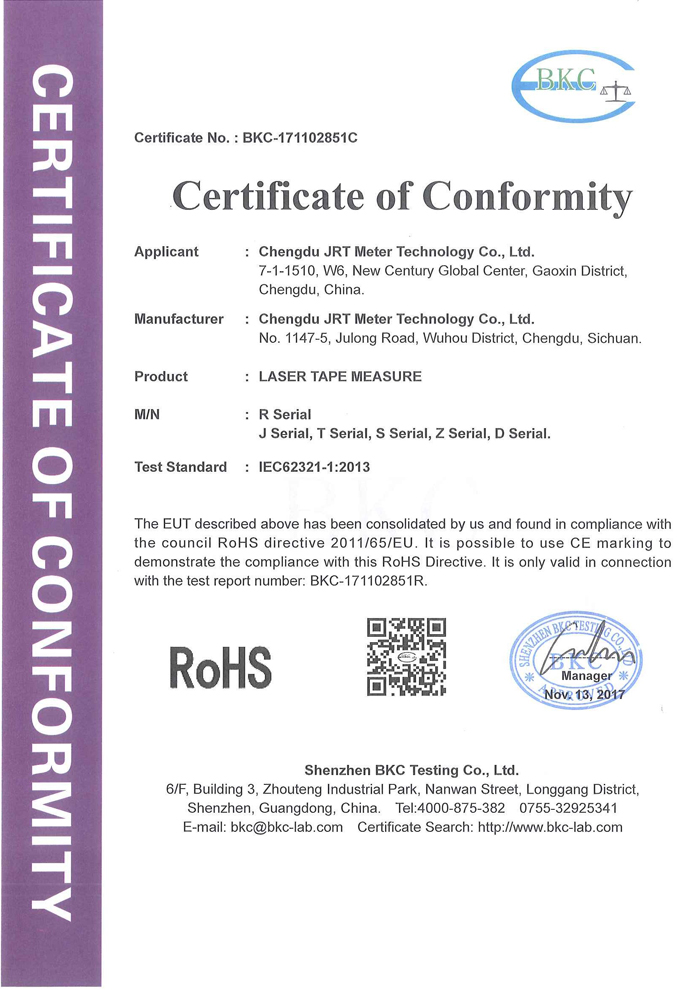

RohsIso9001FdaFcCeCe Emc Testreport


Looking for ideal JRT Laser Distance Meter Sensor Module Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 100m Laser Distance Measurer Sensor are quality guaranteed. We are China Origin Factory of Laser Rangefinder Sensor Module RS232. If you have any question, please feel free to contact us.
