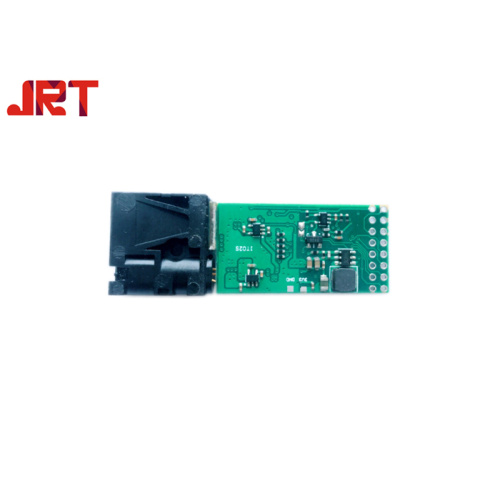

12m High Frequency TOF Laser Distance Rangefinder
12m High Frequency TOF Laser Distance Rangefinder
12m High Frequency TOF Laser Distance Rangefinder

12m High Frequency TOF Laser Distance Rangefinder

Get Latest Price
Payment Type:T/T,Paypal,Western Union
Incoterm:FOB,CFR,CIF,EXW,FCA,CIP
Min. Order:1 Piece/Pieces
Transportation:Air
Port:Chengdu
Product Attributes

Model No.IT02s0827

BrandJRT

Product NameIndustrial Laser Distance Sensor

Baud Rates115200bps(default)

Accuracy2cm~5cm

Packaging & Delivery
Selling Units : Piece/Pieces
Package Type : Natural Packaging
Product Description

12m High Frequency TOF Laser Distance Rangefinder

Description:

If you are looking for a laser sensor that can be used to measure moving targets. Then our IT02S sensor will be a good choice too. This radar sensor, also called tof sensor, can measure the target distance at high frequency, measuring distance of 12 meters, and can be used for industrial automation monitoring.

Characteristics:

Measuring Range: 12m, good for outdoor using
Stronger: even measuring black surface, can be up to 8m
TOF protocol: high frequency, 200hz best
Temperature:-10~+50℃
Size: very small of 46x17x7mm
Interface: UART


Parameters:

Model IT02S-65-A
Measuring Range 0.1-10m @90% reflectivity
Frequency 100Hz/200Hz/300Hz
Accuracy 4cm @90% reflectivity
Absolute Accuracy 90% reflectivity:8cm @ within 7m
3% @7-15m
Blind Area 10cm
Resolution 1cm
Light 650nm, <1mw,red,class 2
100Hz
780nm can be customized
Resistance to Light 10000 LUX
Operating Voltage DC +3.3V,
Working range: +2.7V~+3.6V
Operating Current(@100Hz) 51mA(2)
Power(@100Hz) 168 mw(2)
Operating Temperature 0-40 ℃(regular)-10-+50 ℃(Higher and lower)(3)
Communication interface UART,115200bps(default)
Serial level TTL 3.3V
Volume 46*17*7mm
Weight 10g


Pictures:

12m High Frequency Tof Laser Distance Rangefinder

Chengdu JRT Main Ranging Modules: laser distance meter module, industrial laser Distance Sensor, mini TOF ranging sensor.
