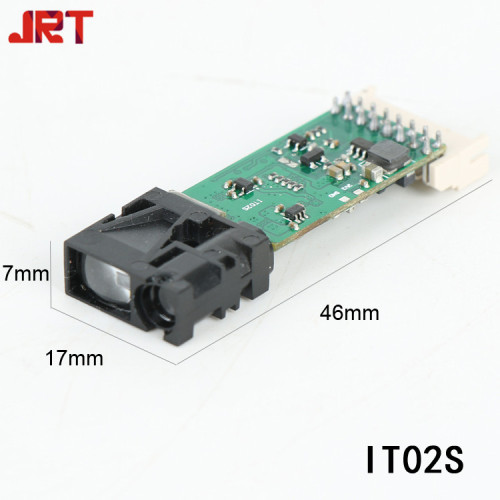

LiDAR Module Time Of Flight Laser Sensors
LiDAR Module Time Of Flight Laser Sensors
LiDAR Module Time Of Flight Laser Sensors
LiDAR Module Time Of Flight Laser Sensors
LiDAR Module Time Of Flight Laser Sensors

LiDAR Module Time Of Flight Laser Sensors

Payment Type: T/T,Paypal,Western Union
Incoterm: FOB,EXW,FCA
Delivery Time: 3 Days

Basic Info

    Model No.: IT02S-b20417

    Laser Class: Class II

    Size: 46*17*7mm

    Product Name: Tof LiDAR Sensor

    Measuring Frequency: 100 Hz

    Laser Type: 650nm, <1mw, Red

    Voltage: DC2.5V~+3.5V

    Serial Level: TTL 3.3V

    Model Number: IT02S

    Accuracy: +/-8cm@ 0.1~3.5m

    Measuring Range (without Reflection): 0.1-10m

Additional Info

    Productivity: 10000pcs/day

    Brand: JRT Measure

    Certificate: CE , ISO9001, ROHS, FCC, FDA

    HS Code: 9031499090

Product Description

LiDAR Module Time Of Flight Laser Sensors

Dear Sir, dear Madam,
Are you interested in the Laser Distance Measurement product which we suggest and it can measure very fast up to 100 Hz. If you can give us your website or more requirements, we would be happy to help give you more advice. We are a Chinese company who devoted to laser industry since 2004. With a global trading segment, so that we alrady sold our Industrial Distance Sensors to many countries. As well as the development of Laser Rangefinder Module solutions, our other production line, the Hand Tools customers will diy their own Laser Distance Meter.
For questions, please don't hesitate to let me know.
Thanks with best regards,

Data sheet:

Model: IT02S-650
Range: 0.1-12m@70%
Output Frequency: 100Hz (200Hz can be customized)
Accuracy: +/-3cm at 70%
Absolute Accuracy: +/-8cm at 0.1~3.5m
+/-2% at 3.5-15m - 70%
Blind Area: 10cm
Resolution: 1cm
Light: 650nm red laser,class 2, < 1mw@100Hz(780nm can be customized)
Resistance to Light: 10000 LUX
Working Voltage: DC +3.3V
Working: +2.5V~+3.5V)
Working Current: ~55mA at 100Hz
Power: ~181mw@100Hz
Operating Temperature: 0~50℃(5)
Communication interface: UART, baud rate 115200bps(Default)
Serial level: TTL 3.3V
Volume: 46*17*7mm
Weight: ~10g

Notes:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. Voltage can be changed by power converter LDO
4. Frequency would be affected by environment.
5. Operating temperature -10 ℃~50 ℃ can be customized.
6. Analog can be customized.

More Detailed Pictures

Short Distance Industrial LiDAR Solutions

Diagram For the Time Of Flight Laser Sensors

Diagram For the Time Of Flight Laser Sensors

Applications for Tof Sensors

Applications for Tof Sensors

Jrt Outdoor Laser Measurers

Other range laser Distance Sensor:

40m Stability Small Distance Measurement Sensor
100m Long Range Distance Measuring Sensors
10m Lidar Sensor details
100m Lidar Sensor Price details
