Model No.: IT03M081901
Brand: JRT
Origin: China Mainland
Certification: CE , ISO9001, ROHS, FCC, FDA
Product Name: Industrial Laser Distance Sensor
Baud Rates: 115200bps(default)
Accuracy: 2cm~5cm
| Selling Units | : | Piece/Pieces |
| Package Type | : | Natural Packaging |
The file is encrypted. Please fill in the following information to continue accessing it

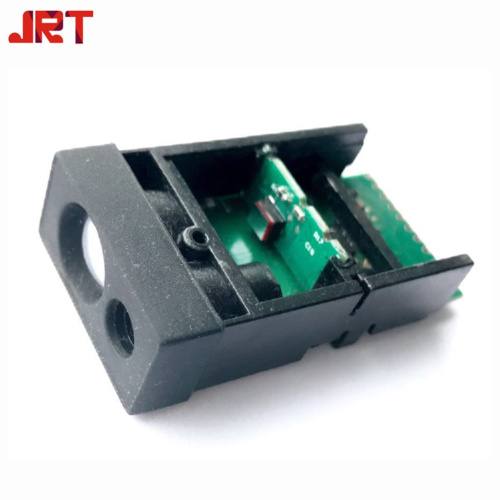

15m High Frequency LiDAR Laser Distance Sensor
Description:
IT03M lidar laser Distance Sensor, also called ToF Distance Sensor.It has the characteristics of high frequency, the highest measurement frequency can reach 200 Hz, and can measure some moving targets. At the same time, it is compact and can work in 0-40 degree environment, you are welcome to pick and buy.
Characteristics:
Measuring Range: 15m, good for outdoor using
Stronger: even measuring black surface, can be up to 8m
TOF protocol: high frequency, 200hz best
Temperature:-10~+50℃
Size: very small of 46x25x12mm
Interface: UART
| Model | IT02S-65-B |
| Measuring Range | 0.1-10m @90% reflectivity |
| Frequency | 100Hz/200Hz/300Hz |
| Accuracy | 5cm @90% reflectivity |
| Absolute Accuracy | 90% reflectivity:5cm @ within 7m |
| 2% @7-15m | |
| Blind Area | 10cm |
| Resolution | 1cm |
| Light | 650nm, <1mw,red,class 2 |
| 100Hz | |
| 780nm can be customized | |
| Resistance to Light | 10000 LUX |
| Operating Voltage | DC +3.3V, |
| Working range: +2.7V~+3.6V | |
| Operating Current(@100Hz) | 51mA(2) |
| Power(@100Hz) | 168 mw(2) |
| Operating Temperature | 0-40 ℃(regular)-10-+50 ℃(Higher and lower)(3) |
| Communication interface | UART,115200bps(default) |
| Serial level | TTL 3.3V |
| Volume | 45*25*12mm |
| Weight | 10g |
