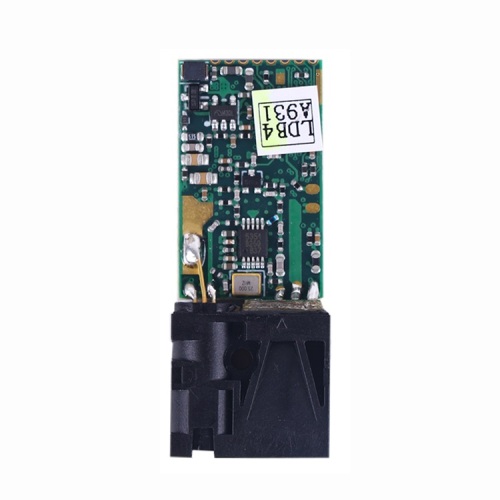

30m 1mm High Resolution Distance Sensor
Get Latest PricePayment Type: | T/T,Paypal,Western Union |
Incoterm: | FOB,EXW |
Payment Type: | T/T,Paypal,Western Union |
Incoterm: | FOB,EXW |
Model No.: U85-1101-2186g
Brand: JRT Measure
Place Of Origin: China
Principle: Optical Sensor
Output: Digital Sensor
Amplifier Type: Optical
Jack: Digital, Serial
Application: Industrial Automation
Baud Rates: 19200bps
Weight: 10g
Resolution: 1mm
Electrical Level: TTL/CMOS
Baud Rates: 9600bps/19200bps
Product Name: Industrial Laser Distance Sensor
Operating Voltage: DC 3V - DC 3.3V
Frequency: 3 Hz
Working Temperature: 0 ~ 40°C
Distance: 0.03-30m
30m 1mm High Resolution Distance Sensor
The Optical Distance Sensors achieve 30m short-range presence detection using a visible, focused laser beam spot. According to the latest version, customers can test the laser range components simply via using all available distance functions commond of the hexadecimal system. High resolution up to 1mm, the arduino distance measurement laser usually used to some samrt monitoring project. Any more data sheet of sensor u85. Please contact us.
Key parameters:
1. Reliable, fast, precise
Three interfaces optional: ttl, usb, rs232
Accuracy: +-1mm
Measuring time: 0.4s-4s
2.Small, long range
Size:41x17x7mm
Measuring range up to 30 m
Detailed parameters
Accuracy ± 1 mm Measuring Unit mm Measuring Range 0.03-30m Measuring Time 0.4~4 seconds Laser Class Class II Laser Type 620nm-690nm, <1mW Size 41*17*7mm Weight About 4g Automatic laser off 15s Display lighting White LED Battry type 200 mAh rechargeable lithium battery Operating Temperature 0-40 ℃ (32-104 ℉ ) Storage Temperature -25~60 ℃ (-13~140 ℉)
Notes:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. Voltage can be changed by power converter LDO
4. Frequency would be affected by environment.
5. Operating temperature -10 ℃~50 ℃ can be customized.
6. Analog can be customized.
More Detailed Pictures:
Diagram for the Laser Distance Sensor:
